MODCON® PREMIUM PLUG
The MODCON® modular PREMIUM plug series, with Advanced Alignment Technology, is a forward thinking development of a building block system for modular plugs, to be used for industrial and office environments . e.g. CAT6A, CAT8, 10Gbps + 40Gbps.
High Data Transmission
AAT – Advanced Alignment Technology is a modular design with special wire alignment, metal wire manager and contacts for high speed applications
Key Features
- Performance exceeds CAT6A / CAT8.1 international standards including UL 94 V-0
- Excellent electrical performance with 360° shield termination
- Single-step termination process — shield and contacts crimped in one operation
- Smooth gold-plated contacts for solid or stranded conductor termination
- Slim design for high-density applications
- Hoods and color key rings available in various sizes and colors
- Supports wire diameters from 0.81 mm to 1.7 mm
- Unibody design for large wire diameters of 1.35 mm and 1.6 mm
- Metal clamp strain relief for a wide range of cable outer diameters
Specifications
- Gold plating options from 6 to 50 µin (standard: 30 µin)
- W-blade contacts for solid and stranded wires
- Straight or angled latch options
- Polycarbonate housing, UL 94 V-0
- Available in multiple colors

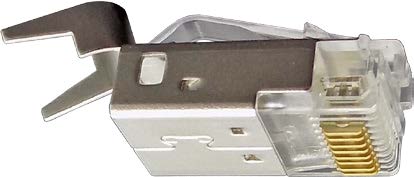

Shielded Plug
Cat6A
Hoods, Cover, Color-Rings
various colors
Industrial Plug
8P4C
Shielded Plug
Cat8

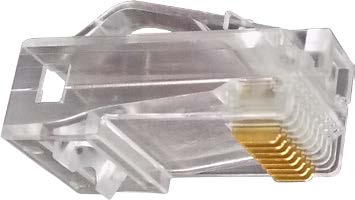

Unshielded Plug
Cat6A

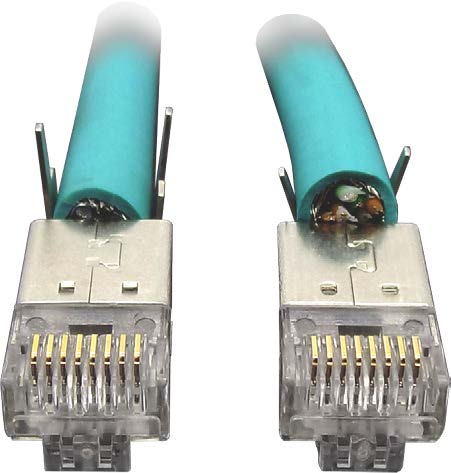

Industrial Plug
8P8C
